Specifications：

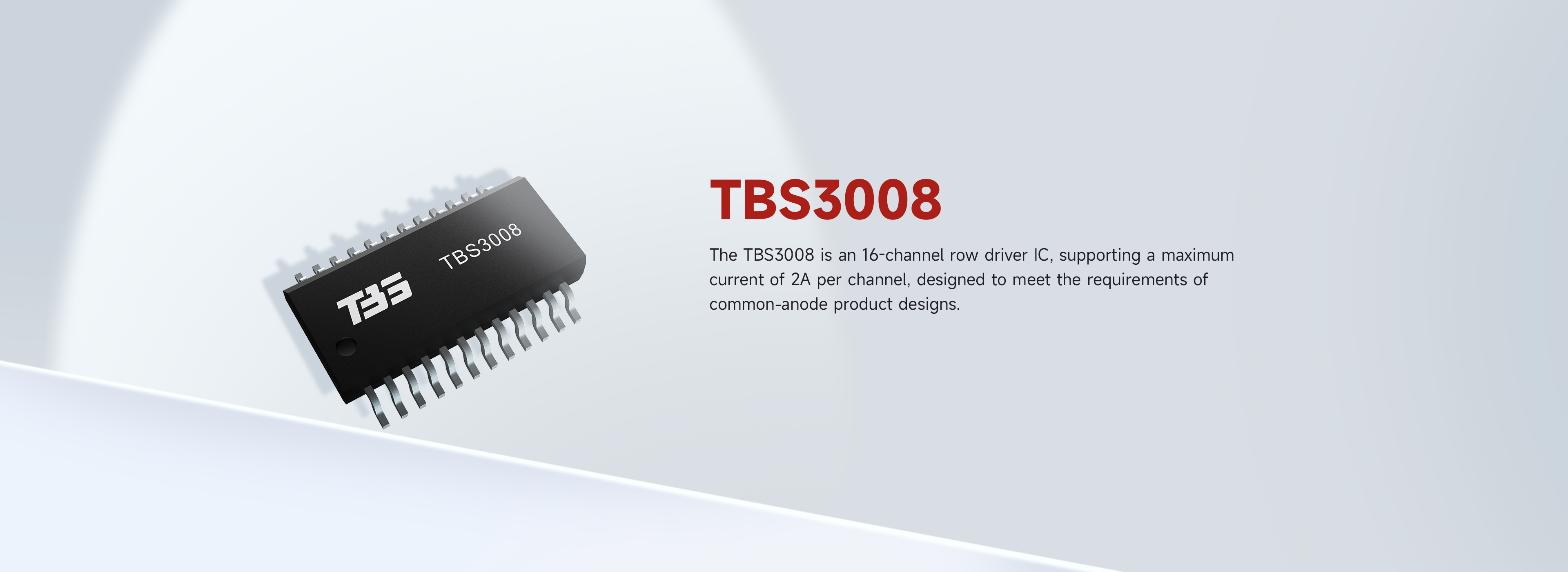

Type TBS3008	Main Applications Common-anode Driver
Row Driver Type PMOS	Output Channels 16
Maximum Current Per Channel 2A	Power Supply Voltage 3.3-5V
On-State Resistance 130mΩ	Coupling Suppression √
Monitor Ghosting Elimination (Upward) √	Package SSOP24

Comparison：

Type	LED Tpye	Driving Architecture	Output Channels	Bit Depth	Current Range	Package Type	Error Detection	Row Driver Integration	More
TBS5367	Common-cathode	PAM+PWM	48	24bit	0.1~10mA	QFN88	Yes	Yes
TBS5267A	Common-cathode	PAM+PWM	16	16bit	0.2~20mA	SSOP24/QFN24	Yes	No
TBS5266A	Common-anode	PAM+PWM	16	16bit	0.2~20mA	SSOP24/QFN24	Yes	No
TBS3266A	Common-anode	PAM+PWM	16	16bit	0.2~20mA	SSOP24	Yes	No

Type	LED Tpye	Driving Architecture	Output Channels	Bit Depth	Source Voltage Range	Interface	Transmission Rate	GOA Channels	More
TBS5662	Common-cathode	2 optional Duty	480Chs	12bit	0.2~7.3V Typ	P2P	0.6Gbps~2Gbps	52Chs

Type	LED Tpye	Output Channels	Max. Current	Package Type	Coupling Suppression	Ghost Elimination	More
TBS2008	Common-anode	8	2.5A	SOP16/QFN16	Yes	Yes
TBS2009	Common-cathode	8	2.5A	SOP16/QFN16	Yes	Yes
TBS3009	Common-cathode	16	1.7A	SSOP24/QFN24	Yes	Yes
