Specifications：

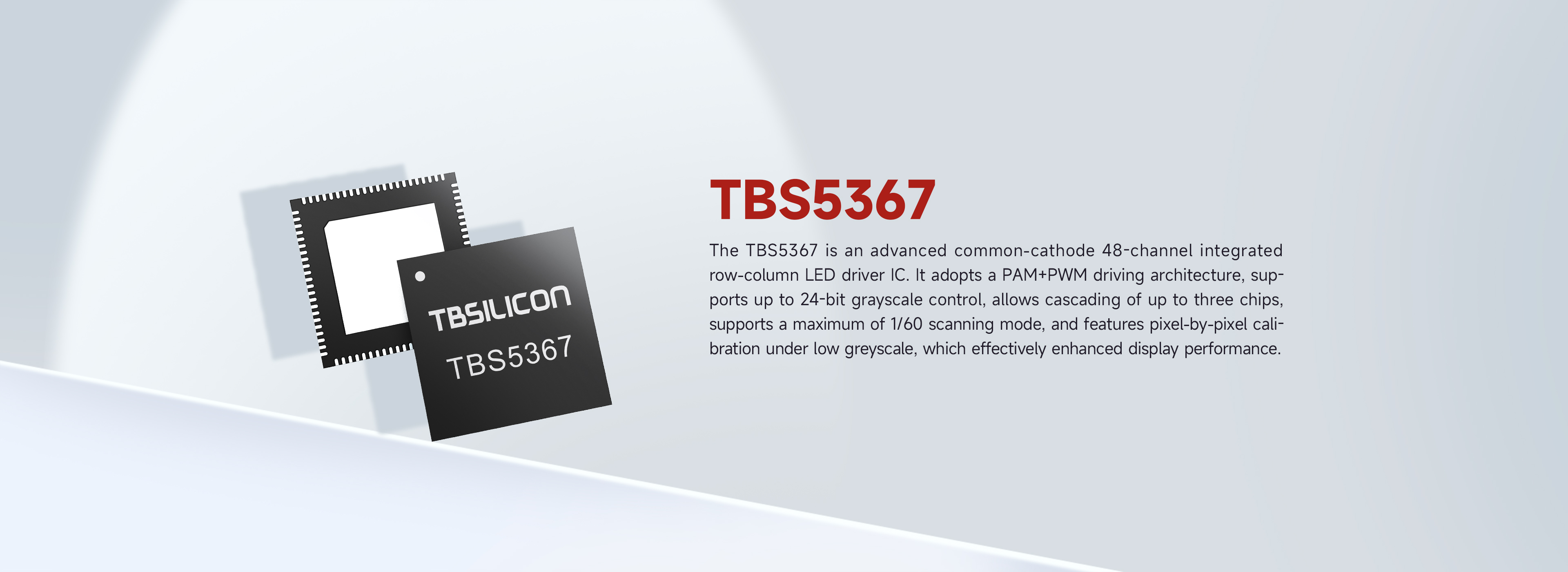

Type TBS5367	Supported LED Types Common-cathode
Supported Scanning Mode 20S*3	Output Channels 48CH/20LINE
Power Supply Voltage 2.8/3.8-5V	Output Constant Current Range 0.1~10mA
Grayscale Control 12-24bit	PWM 16bit
PAM 8bit	Channel-to-Channel Current Variance ±1.5%
Chip-to-Chip Current Variance ±1.5%	Supported Refresh Rate 3840Hz/7680Hz/15360Hz
White Balance Resistor External	S-PWM-like Technology √
LED Error Detection √	Chip-Level Dynamic Power Saving √
Sleep Mode Power Saving √	Pixel-Level Dynamic Power Saving √
Open Circuit Detection and Protection √	Packaging QFN88

Comparison：

Type	LED Tpye	Driving Architecture	Output Channels	Bit Depth	Current Range	Package Type	Error Detection	Row Driver Integration	More
TBS5267A	Common-cathode	PAM+PWM	16	16bit	0.2~20mA	SSOP24/QFN24	Yes	No
TBS5266A	Common-anode	PAM+PWM	16	16bit	0.2~20mA	SSOP24/QFN24	Yes	No
TBS3266A	Common-anode	PAM+PWM	16	16bit	0.2~20mA	SSOP24	Yes	No

Type	LED Tpye	Driving Architecture	Output Channels	Bit Depth	Source Voltage Range	Interface	Transmission Rate	GOA Channels	More
TBS5662	Common-cathode	2 optional Duty	480Chs	12bit	0.2~7.3V Typ	P2P	0.6Gbps~2Gbps	52Chs

Type	LED Tpye	Output Channels	Max. Current	Package Type	Coupling Suppression	Ghost Elimination	More
TBS2008	Common-anode	8	2.5A	SOP16/QFN16	Yes	Yes
TBS2009	Common-cathode	8	2.5A	SOP16/QFN16	Yes	Yes
TBS3008	Common-anode	16	2A	SSOP24	Yes	Yes
TBS3009	Common-cathode	16	1.7A	SSOP24/QFN24	Yes	Yes
