Specifications：

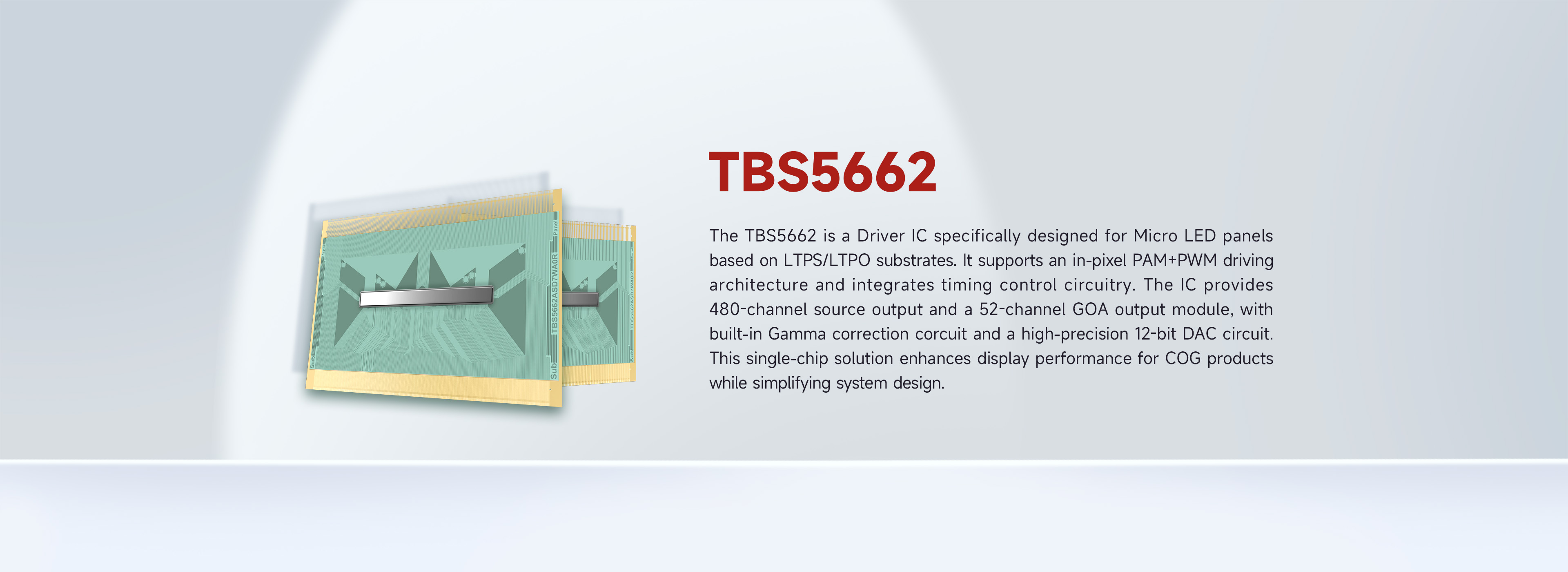

Type TBS5662	Source Output Channel 480
GOUT Output Channel 52	Source Voltage Range 0.2~7.3V
Gamma Binding Points (Analog+Digital) 10+30	Gamma Voltage Generation Mode Internal/External Supply
DAC Accuracy 12bit	Interface Type P2P
Interface Transmission Rate 0.6~2Gbps	Package COF
PAM+PWM PAM+PWM PAM	VRR 30~240Hz
Timing Control √	Integrated High Voltage LDO √
OTP √

Comparison：

Type	LED Tpye	Driving Architecture	Output Channels	Bit Depth	Current Range	Package Type	Error Detection	Row Driver Integration	More
TBS5367	Common-cathode	PAM+PWM	48	24bit	0.1~10mA	QFN88	Yes	Yes
TBS5267A	Common-cathode	PAM+PWM	16	16bit	0.2~20mA	SSOP24/QFN24	Yes	No
TBS5266A	Common-anode	PAM+PWM	16	16bit	0.2~20mA	SSOP24/QFN24	Yes	No
TBS3266A	Common-anode	PAM+PWM	16	16bit	0.2~20mA	SSOP24	Yes	No

Type	LED Tpye	Driving Architecture	Output Channels	Bit Depth	Source Voltage Range	Interface	Transmission Rate	GOA Channels	More

Type	LED Tpye	Output Channels	Max. Current	Package Type	Coupling Suppression	Ghost Elimination	More
TBS2008	Common-anode	8	2.5A	SOP16/QFN16	Yes	Yes
TBS2009	Common-cathode	8	2.5A	SOP16/QFN16	Yes	Yes
TBS3008	Common-anode	16	2A	SSOP24	Yes	Yes
TBS3009	Common-cathode	16	1.7A	SSOP24/QFN24	Yes	Yes
